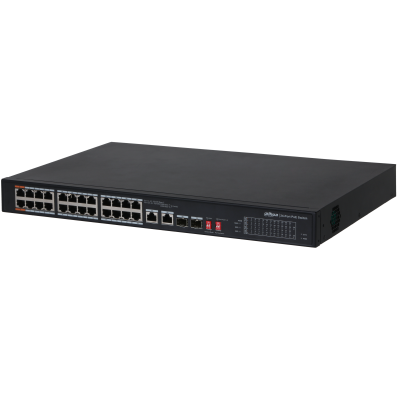

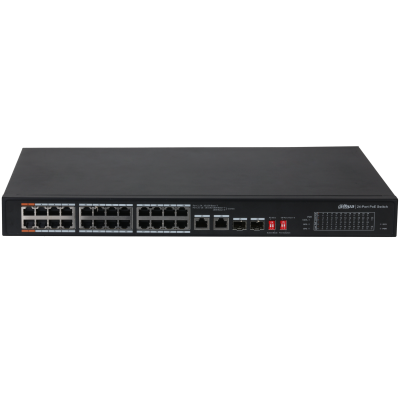

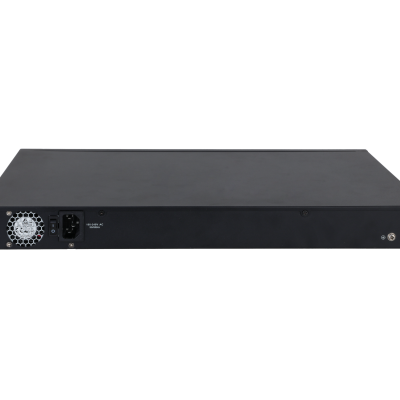

S3226-24ET-360 26-Port Unmanaged Switch with 24-Port PoE

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

24

Optical Port

2

Ethernet Port Speed

10/100 Mbps

Optical Port Speed

1 Gbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-24: 16 × RJ45 10/100 Mbps (PoE)
Port 25-26: 2 × RJ45 10/100/1000 Mbps (uplink)
Port 25-26: 2 × SFP 1000 Mbps (uplink)(combo)

Power Supply

100–240 VAC

Operating Temperature

–10 °C to 55 °C (14°F to 131°F)

Operating Humidity

10%–95% (RH), non-condensing

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: 6 W
Full load: 360 W

Performance

Layer

Layer 2

Management Type

No

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

6.5472 Mpps

Packet Buffer Size

4 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE802.3ab; IEEE 802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1-2≤ 60 W,
Port 3-24≤30 W,

total≤360 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

QoS/ACL

The first 8 ports have priority for transmission

General

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

3.27 kg (7.20 lb)

Gross Weight

4.37 kg (9.63 lb)

Product Dimensions

440 mm × 300 mm × 44 mm (17.32”× 11.81”× 1.73")

Packaging Dimensions

527 mm × 412 mm × 110 mm (20.75”× 16.22”× 4.33")

Installation

Desktop mount; Rack mount

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10
