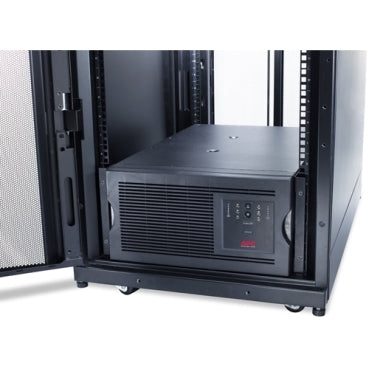

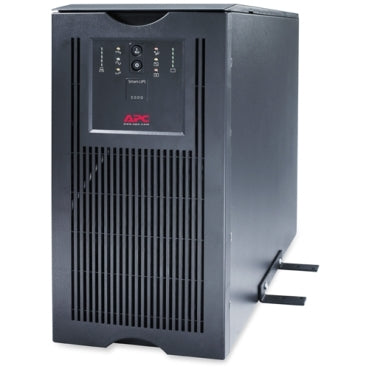

APC Smart-UPS 5000VA 230V Rackmount/Tower
Specifications
Overview
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually Ships within 4 Weeks |
|
Run time for load
WMin-max: 400-4000 W
|
9min 21s |
|---|---|
|
|
|
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 4000 W |
| Rated power in VA | 5000 VA |
| output connection type | 8 IEC 320 C13 4 IEC Jumpers 2 IEC 320 C19 |
| Number of rack unit | 5U |
| battery type | VRLA |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card |
| Run Time | View Runtime Graph |
|---|---|
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 2 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC55 |
| Battery power in VAH | 1632 VAh runtime |
| Battery charger power | 542 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 22.2 cm |
| Width | 48.3 cm |
| Depth | 66 cm |
| Net weight | 97.73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Input voltage limits | 151...302 V adjustable 160...286 V |
|---|---|
| Number of input connectors | 1 hard wire 3-wire |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Crest factor | 3 : 1 |
|---|---|
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 5000 VA |
| Maximum configurable power in W | 4000 W |
| Transfer time | 2 ms typical : 4 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Efficiency | 96 % (full load) |
| Output frequency | 47...53 Hz for 50 Hz nominal sync to mains |
| Product certifications | C-Tick CE GOST VDE |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 53 dBA |
|---|---|
| Heat dissipation | 430 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| alarm | Audible and visible alarms : configurable delays |
|---|---|
| Free slots | 0 |
| Preinstalled device | Network management card |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Surge energy rate | 480 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 63.5 cm |
| Package 1 Width | 61 cm |
| Package 1 Length | 76.2 cm |
| Package 1 Weight | 106.82 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 119 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 464 kg |
